Sanyo HIT Watt Solar Panel, HIT - 205BA19

Price:
$845.56
Brand:
Weight:
35.00 LBS
Shipping:
Calculated at checkout
Quantity:


Product Description

SANYO’S Proprietary Technology

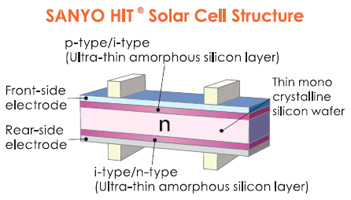

HIT solar cells are hybrids of mono crystalline silicon surrounded by ultra-thin amorphous silicon layers, and are available solely from SANYO.

Sanyo HIT Power Solar Cells

High Efficiency HIT® Power solar panels are leaders in sunlight conversion efficiency. Obtain maximum power within a fixed amount of space. Save money using fewer system attachments and racking materials, and reduce costs by spending less time installing per watt. HIT Power models are ideal for grid-connected solar systems, areas with performance based incentives, and renewable energy credits. Power Guarantee SANYO’s power ratings for HIT Power panels guarantee customers receive 100% of the nameplate rated power (or more) at the time of purchase, enabling owners to generate more kWh per rated watt, quicken investments returns, and help realize complete customer satisfaction. Temperature Performance As temperatures rise, HIT Power solar panels produce 10% or more electricity (kWh) than conventional crystalline silicon solar panels at the same temperature. Valuable Features The packing density of the panels reduces transportation, fuel, and storage costs per installed watt. Quality Products Made in USA SANYO silicon wafers located inside HIT solar panels are made in California and Oregon (from October 2009), and the panels are assembled in an ISO 9001 (quality), 14001 (environment), and 18001 (safety) certified factory. Unique eco-packing minimizes cardboard waste at the job site. The panels have a Limited 20-Year Power Output and 5-Year Product Workmanship Warranty. Sanyo Solar HIT Power 205N

Datasheets

Technical Specifications

General Information
Manufacturer:
Model ID/Number:
HIT Power 205N
Product Line:
HIT Power N
Made in:
USA
Safety Ratings & Certifications:
C & US
1703
CEC
Warranty Information:
5 Year Workmanship
Warranty Information:
10 Year Warranty (90% Power Production)
Warranty Information:
20 Year Warranty (80% Power Production)
Electrical Characteristics
Rated Power (Pmax):
205 Watts
Watts (PTC):
190.2 Watts
Max Power Voltage (Vpm):
40.7 Volts
Max Power Current (Ipm):
5.05 Amps
Open Circuit Voltage (Voc):
50.3 Volts
Short Circuit Current (Isc):
5.54 Amps
Max System Voltage:
600 Volts
Cell Efficiency:
18.4%
Module Efficiency:
16.3%
Mechanical Data & Components
Panel Technology:
Mono-crystalline Silicon
Panel Dimensions:
62.2 × 31.4 × 1.8 inches
Panel Weight:
35.3 pounds
Cells Per Module:
72
Cable Size / Connector Type
No. 12 AWG / MC4 Locking Connectors
